Adsorption Regenerative Dryer
Share This Product:
  • DESCRIPTION

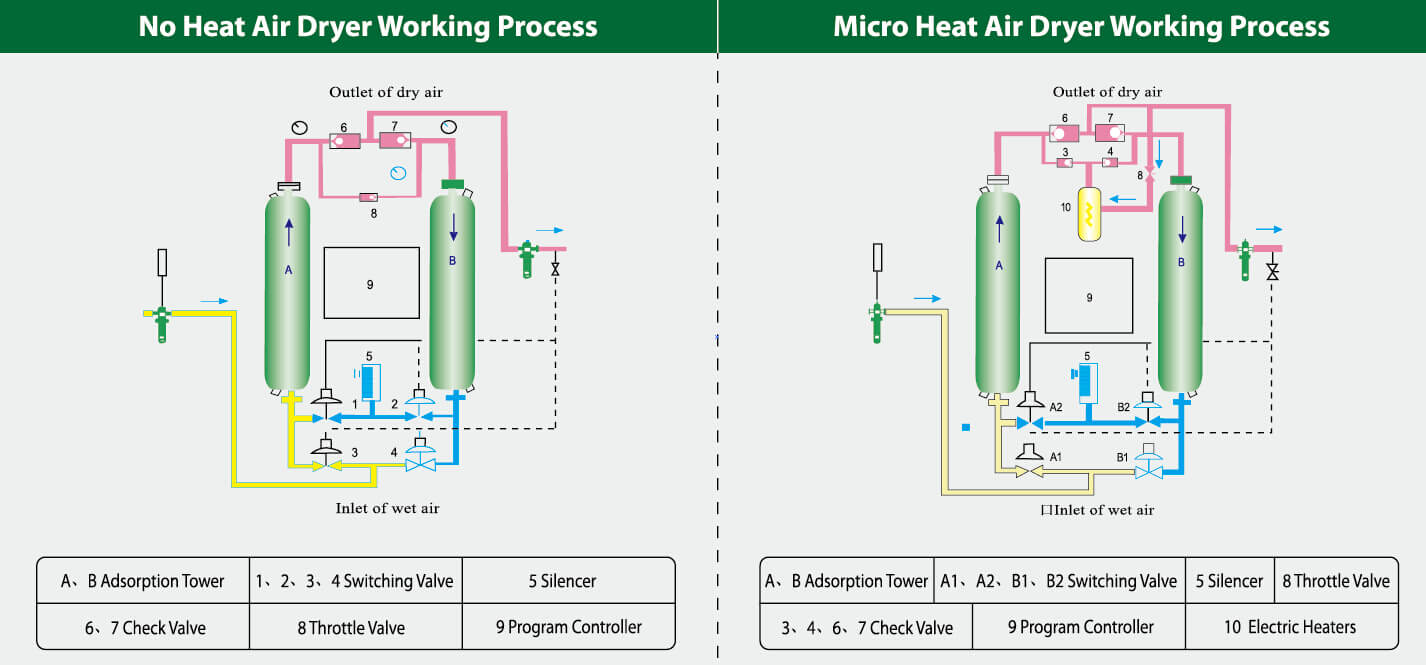

  • No-Heat Regenerative Desiccant Dryer
  • Micro-Heat Regenerative Desiccant Dryer
  • Regeneration Gas:≤12%-15% Working Pressure: 0.6 ~1.0mpa
    Intake Oil Content: ≤0.01ppm
    Pressure Dew Point: -20℃-40℃

    Power Supply : 220v 50hz Desiccant: Activated Alumina Or Molecular Sieve
    Working Period: t= 4 ~20minutes Inlet Temperature ≤0℃~ 45℃

Model

Air handling capacity(Nm³/min)

Air nozzle caliber

Outline size

Equipment weight(Kg)

Length(mm)

Width(mm)

Height(mm)

SZD-1WXF

1.2

ZG1

910

420

1418

120

SZD-2WXF

2.4

ZG1

910

420

1518

140

SZD-3WXF

3.8

ZG1.5

1000

450

1890

220

SZD-5WXF

5.5

ZG1.5

1000

450

1890

340

SZD-6WXF

6.5

ZG1.5

1200

500

1960

380

SZD-8WXF

8.5

ZG1.5

1200

500

1960

430

SZD-10WXF

10.7

ZG2

1400

600

2100

520

SZD-13WXF

13.5

ZG2

1400

600

2150

580

SZD-15WXF

18

DN65

1400

600

2200

640

SZD-20WXF

25

DN80

1670

650

2480

730

SZD-30WXF

35

DN100

1576

672

2523

960

SZD-40WXF

45

DN100

1688

722

2568

1150

SZD-50WXF

55

DN125

1900

750

2800

1380

SZD-60WXF

65

DN125

1900

750

3100

1600

SZD-80WXF

85

DN150

2620

1120

3070

2580

SZD-100WXF

110

DN150

3100

1650

3200

3800

SZD-160WXF

160

DN200

3240

1770

3190

5200

  • Regeneration Gas:≤4%-6% Working Pressure: 0.4 ~1.0mpa
    Intake Oil Content: ≤0.01ppm
    Pressure Dew Point: -40℃-70℃

    Power Supply :380v 50hz Desiccant: Activated Alumina Or Molecular Sieve
    Working Period: t= 60 ~180minutes Inlet Temperature ≤0℃~ 45℃

Model

Air handling capacity(Nm³/min)

Heater power(KW)

Air nozzle caliber

Outline size

Equipment weight(Kg)

Length(mm)

Width(mm)

Height(mm)

SZD-1MXF

1.2

1.5

ZG1

910

530

1418

145

SZD-2MXF

2.4

1.5

ZG1

910

530

1518

160

SZD-3MXF

3.8

1.5

ZG1.5

1000

575

1800

245

SZD-5MXF

5.5

1.5

ZG1.5

1000

575

1800

360

SZD-6MXF

6.5

3

ZG1.5

1200

560

1960

405

SZD-8MXF

8.5

3

ZG1.5

1200

560

1960

440

SZD-10MXF

10.7

4.5

ZG2

1400

600

2100

560

SZD-13MXF

13.5

4.5

ZG2

1400

600

2150

620

SZD-15MXF

18

4.5

DN65

1400

635

2200

680

SZD-20MXF

25

6

DN80

1670

725

2480

780

SZD-30MXF

35

8

DN100

1576

672

2523

1040

SZD-40MXF

45

8

DN100

1688

722

2568

1210

SZD-50MXF

55

8

DN125

1900

750

2800

1450

SZD-60MXF

65

8

DN125

1900

720

3100

1700

SZD-80MXF

85

20

DN150

2620

1120

3073

2800

SZD-100MXF

110

30

DN150

3100

1650

3200

4020

SZD-160MXF

160

50

DN200

3240

1770

3190

5600
