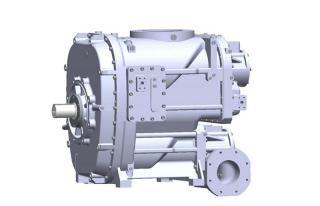

High Efficiency One-Stage Air End

Air Delivery Range: 0.22~115.46 m3/min

Air Pressure Range: 4.0~17.0 BarG

Share This Product:
  • TECHNICAL PARAMETERS

No

Model

Air Delivery Range (m³/min)

Rotation Range
(rpm)

Min.

Max.

Min.

Max.

1

SZA1201

0.22

0.88

2000

8000

2

SZA1202

0.42

2.01

1450

7000

3

SZA1204

0.89

4.32

1450

7000

4

SZA1206

1.18

5.72

1450

7000

5

SZA1207

1.34

6.49

1450

7000

6

SZA1208

1.66

7.43

1450

6500

7

SZA1211

2.33

10.47

1450

6500

8

SZA1214

3.03

13.56

1450

6500

9

SZA1218

3.53

17.66

1100

5500

10

SZA1224

4.61

23.06

1100

5500

11

SZA1226

5.71

25.93

1100

5000

12

SZA1229

6.18

28.98

960

4500

13

SZA1234

7.21

33.78

960

4500

14

SZA1237

7.82

36.81

850

4000

15

SZA1241

7.95

40.59

725

3700

16

SZA1252

10.15

51.82

725

3700

17

SZA1258

13.81

57.15

725

3000

18

SZA1274

17.73

73.36

725

3000

19

SZA1282

21.93

81.68

725

2700

20

SZA12116

34.88

115.46

725

2400
